Roll the Future
With Albatross Roller & Idler
Albatross Roller & Idler – High strength, lightweight, Non-Sticky, energy-saving with 3-year guarantee.
Call Now
Albatross Roller & Idler – High strength, lightweight, Non-Sticky, energy-saving with 3-year guarantee.
Call Now
Surface
Design
Seal
Saving
Unique
Prevents material buildup on the roller, ensuring smooth belt alignment and reducing maintenance needs.
Protects against dust, water, and debris, increasing bearing life and ensuring silent, smooth operation.
Albatross Roller & Idler uses noiseless bearings for ultra-silent, smooth rotation—ideal for high-speed, low-vibration conveyor operations.
Lightweight design reduces conveyor load, boosts energy efficiency, and simplifies installation.
Made with high-quality materials, Albatross rollers offer long-lasting performance with a 3-year guarantee.
Albatross Roller & Idler features non-magnetic properties, ensuring safe use in sensitive environments like power plants and metal detection zones.
How To
Ensure the conveyor frame and shaft are clean and free from debris. Check that the shaft diameter matches the roller specifications.
Slide the Albatross roller onto the frame carefully. Make sure the seals are intact and properly aligned to prevent dust and water entry.
Tighten the locking mechanisms or set screws to fix the roller firmly. Rotate the roller manually to check for smooth, noise-free movement before running the conveyor.
Roller
Technical
Some of Rolle's sizes we are regular manufacturing.
| Belt | Roller | Mounting | Height Dimension "H" | Width | Length | Dimensions | Roller Dia "D" | W | L | L3 | L1 | L2 | M-d |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 400 | 160 | 500 | 690 | 755 | M12 | 200 | 200 | 200 | 225 | 225 | -- | -- | -- |
| 450 | 190 | 550 | 740 | 805 | M12 | 200 | 200 | 200 | 225 | 225 | -- | -- | -- |
| 500 | 200 | 600 | 790 | 855 | M12 | 200 | 200 | 200 | 225 | 225 | -- | -- | -- |
| 600 | 235 | 700 | 890 | 950 | M12 | -- | -- | -- | 225 | 225 | -- | -- | -- |
| 650 | 250 | 750 | 940 | 1000 | M12 | -- | -- | -- | 225 | 225 | 275 | -- | -- |
| 750 | 290 | 850 | 1040 | 1100 | M12 | -- | -- | -- | 225 | 225 | 275 | -- | -- |
| 800 | 315 | 950 | 1090 | 1150 | M12 | -- | -- | -- | 225 | 225 | 275 | 275 | 275 |
| 900 | 350 | 1050 | 1190 | 1250 | M12 | -- | -- | -- | 225 | 225 | 275 | 275 | 275 |
| 1000 | 380 | 1150 | 1290 | 1350 | M12 | -- | -- | -- | 225 | 225 | 275 | 275 | 275 |
| 1200 | 465 | 1400 | 1490 | 1560 | M16 | -- | -- | 240 | 240 | 275 | 275 | 275 | 290 |
| 1400 | 530 | 1600 | 1690 | 1750 | M16 | -- | -- | 240 | 240 | 275 | 275 | 275 | 290 |
| 1600 | 600 | 1800 | 1900 | 1950 | M16 | -- | -- | 240 | 240 | 275 | 275 | 275 | 290 |
| 1800 | 670 | 2000 | 2100 | 2150 | M20 | -- | -- | 240 | 240 | 275 | 275 | 275 | 290 |
| 2000 | 750 | 2200 | 2300 | 2350 | M20 | -- | -- | 240 | 240 | 275 | 275 | 275 | 290 |
many more sizes as per your drawing we can manufacture
Our
Customer
Quick
The Albatross Roller & Idler by Oliver Rubber Industries LLP is designed to meet the growing demands of modern conveyor systems. With advanced German and American technology, Albatross Rollers provide unmatched performance, durability, and efficiency. This FAQ section aims to answer common queries from industries regarding compatibility, power savings, maintenance, and product lifespan.

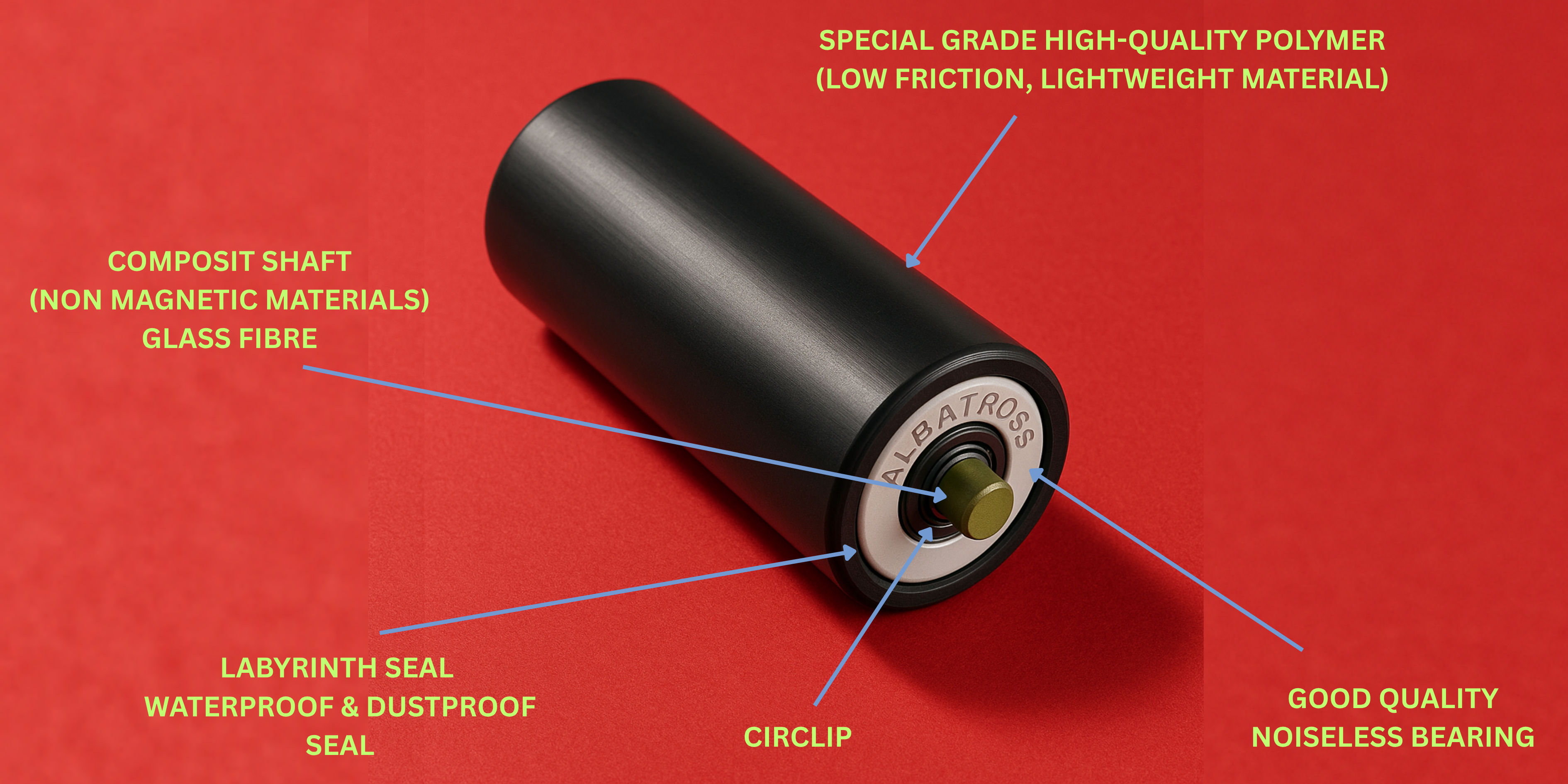

Engineered with a Non-Sticky surface, lightweight body, and triple-sealed bearings, these rollers prevent material buildup, reduce wear on the belt, and enhance operational life. They are ideal for industries like mining, cement, steel, and power plants where consistent performance is critical.
Many users seek clarity on how Albatross Rollers can improve energy efficiency, reduce downtime, and deliver long-term cost savings. With a 3-year guarantee, up to 40% energy saving, and 25% longer belt life, ALBATROSS Rollers stand as a trusted solution. This section helps users make confident, informed decisions for their conveyor systems.
Get in touch today for Free Samples, expert support & Albatross Roller details. We're here to help!
